The Technology Behind Smarter Power

Specifications, performance, and application insights

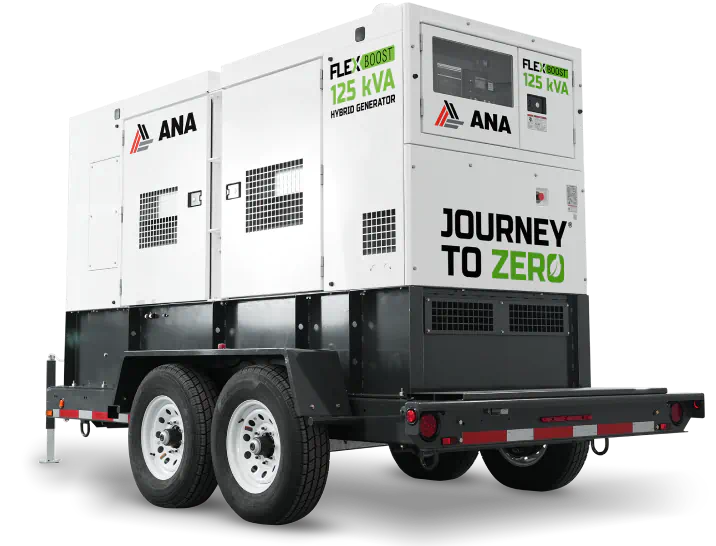

ANA FLEXBoost 125 kVA generator

FLEXBoost™ from ANA is a complete shift in delivering power to real-world loads. It features a compact hybrid mechanical stack with an alternator, electric motor, battery, clutch, and diesel engine. With FLEXBoost, you save fuel, reduce engine runtime, get unmatched frequency response, manage frequent load cycling, maintain continuous loads, and access near-instantaneous auto-start capabilities.

Explore the Technology Behind Next-Gen Hybrid Power

Discover how FLEXBoost redefines portable power. Interact with the 3D model below to explore the intelligent engineering, advanced controls, and innovative technologies that makes next-generation power easier to deploy and operate.

Click the info button

below on the top right for instructions on navigating the 3D viewer.

A Smarter Approach to Mobile Power

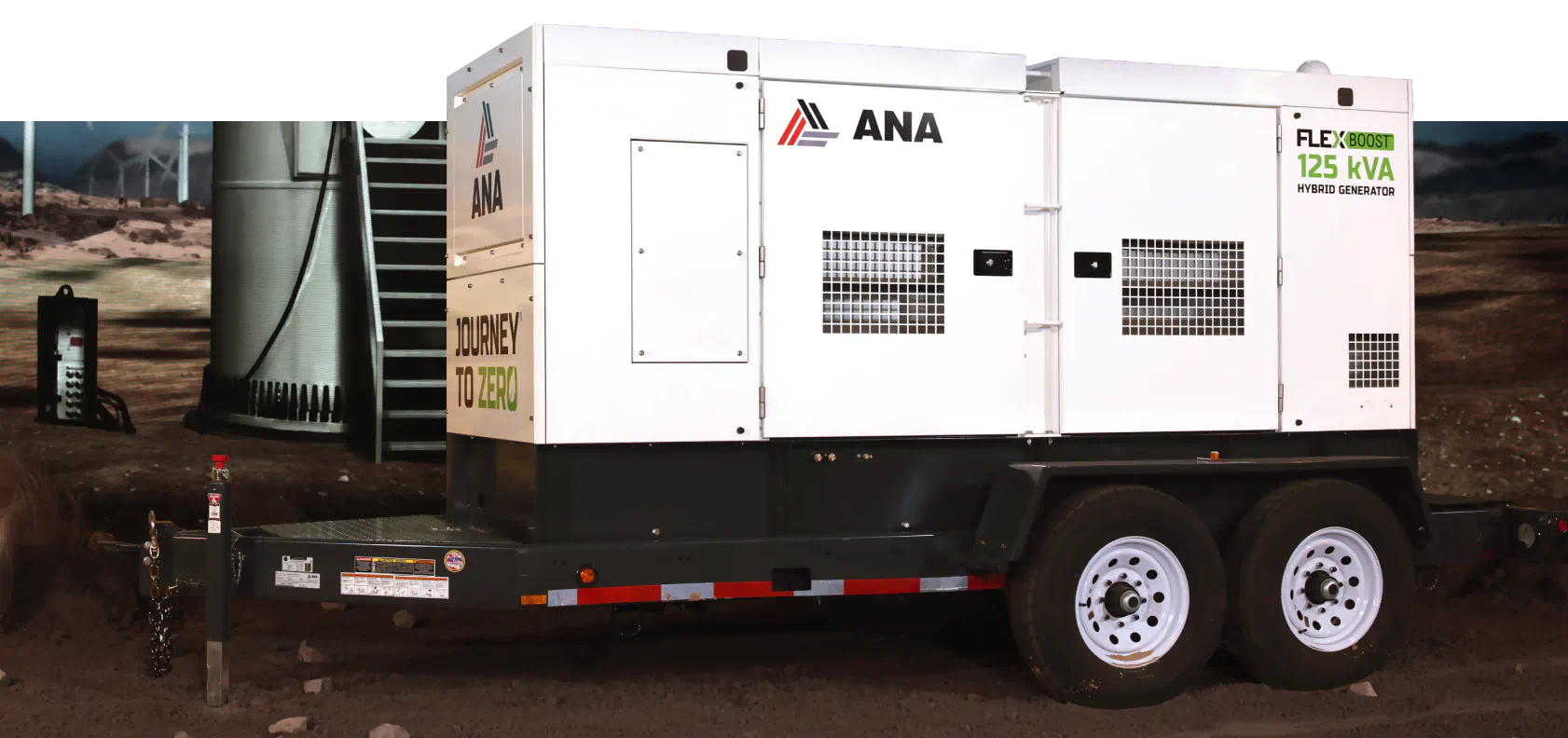

ANA FLEXBoost 125 kVA generator used in remote locations where power is needed

Built for Practical Performance. Designed with Operational Simplicity in Mind.

Generator Specifications
Prime Power
125 kVA / 100 kW
Standby Power
137.5 kVA / 110 kW
Single Phase (120V) Amps
300A
Single Phase (240V) Amps
300A
Three Phase (208V) Amps
328A
Three Phase (240V) Amps
300A
Three Phase (480V) Amps
150A
Hybrid Drive System Specifications
Peak Output
110 kW Max
Battery Chemistry
Lithium Titanium Oxide (LTO)
Battery Capacity
30 kWh
Total Battery Life (Energy Throughout)
2,100 MWh
Operating Temp
-22°C to 130°F (-30°C to 54°C)
Dimensions and Weights
L x W x H Without Trailer
137" x 51" x 73"
GVWR
10,550 lbs

How Smarter Power Works

Move slider to the right

Talk to an Expert.
